Belt Move 22000 KG Weight Pipe Laying Machine For Heavy Duty Construction

Name: Belt Move 22000 KG Weight Pipe Laying Machine For Heavy Duty Construction
Brand: WINCOO
Price: 126 USD

Buy cheap Belt Move 22000 KG Weight Pipe Laying Machine For Heavy Duty Construction product

Place of Origin : Jiangsu, China

Brand Name : WINCOO

Packaging Details : Export package

Supply Ability : 3000 Set/Sets per Month

Price : $126,500.00/sets 1-99 sets

Condition : New

Warranty : 1 Year

Applicable Industries : Manufacturing Plant, Construction works

Weight (KG) : 22000

Showroom Location : None

Video outgoing-inspection : Provided

Machinery Test Report : Provided

Marketing Type : Ordinary Product

Warranty of core components : 1 Year

Core Components : PLC, Engine, Motor, Pump

UNIQUE SELLING POINT : High operating efficiency

Product name : Conveyor Track Shifter

Application : Pipeline construction machinery

After-sales Service Provided : VIDEO SUPPORT

Key Word : Belt Move Heavy Machine

Contact Now

WINCOO ENGINEERING CO.,LTD

Wincoo Engineering Co., Ltd (WINCOO) is engaged in bringing the most suitable solutions/equipment for client, fabricators, EPC/C companies on pipe fabrication, tank construction, pipeline construction, industrial production lines, clean energy project and other industrial field.

Belt Move 22000 KG Weight Pipe Laying Machine For Heavy Duty Construction

HGS70 Belt move heavy machine is designed for shifting belt conveyor on working site of strip mine, it can shift maximum 2500mm belt conveyor, you can shift the belt conveyor by operating the hydraulic shifting head in driver’s cabin, without manual intervention, which can greatly improve belt shifting efficiency.

Product Features

1. Fast moving speed.

2. Strong lifting capacity and stretchable weight.

3. Complete safety devices to ensure the safety of the moving and setting process.

4. 2 cooperative operations can improve efficiency.

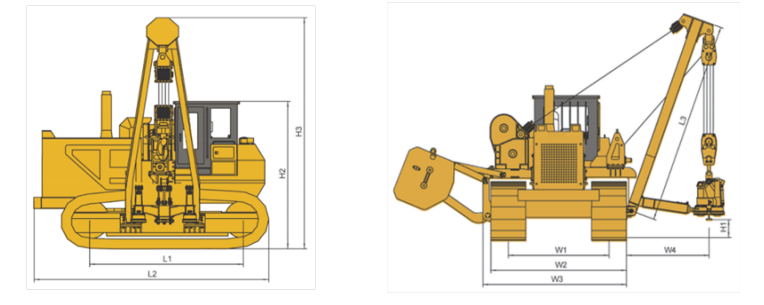

Standard Overall size	W1-Caterpillar track	2380mm
		W2-Outside edge dimension of track	3140mm
		W3-Transport width	3350mm
		W4-Shift head distance (optional)	1805mm
		L1-Grounding length	3620mm
		L2-The whole machine length	5630mm
		L3-Boom length (optional)	4500mm
		H1-Height (suggested)	150mm
		H2-Top bridge height	3540mm
		H3-Overall height (standard boom)	4835mm

Product Parameters

Model			PYS70-2
Engine type			Commins NTA855-C360
Rated engine power/speed			235/2000 kW/rpm
Machine weight			49T
Overall dimensions			5780×6850×3950 mm
Maximum shift weight			16T
Maximum lift			300 mm
Set the maximum shift distance			1000 mm
Suitable for rail specification			50 ～ 75 kg/m(GB 2585)
Walking speed	Forward 1 block	3.6 km/h
		Forward 2 block	6.6 km/h
		Forward 3 block	11.5 km/h
		Back 1 block	4.4 km/h
		Back 2 block	7.8 km/h
		Back 3 block	13.5 km/h
Mode of operation			Hydraulic shift head, handle operation
Shift head clamp indication			The optional
Moving head surveillance camera			The optional
Switchable dozer			320 horsepower dozer

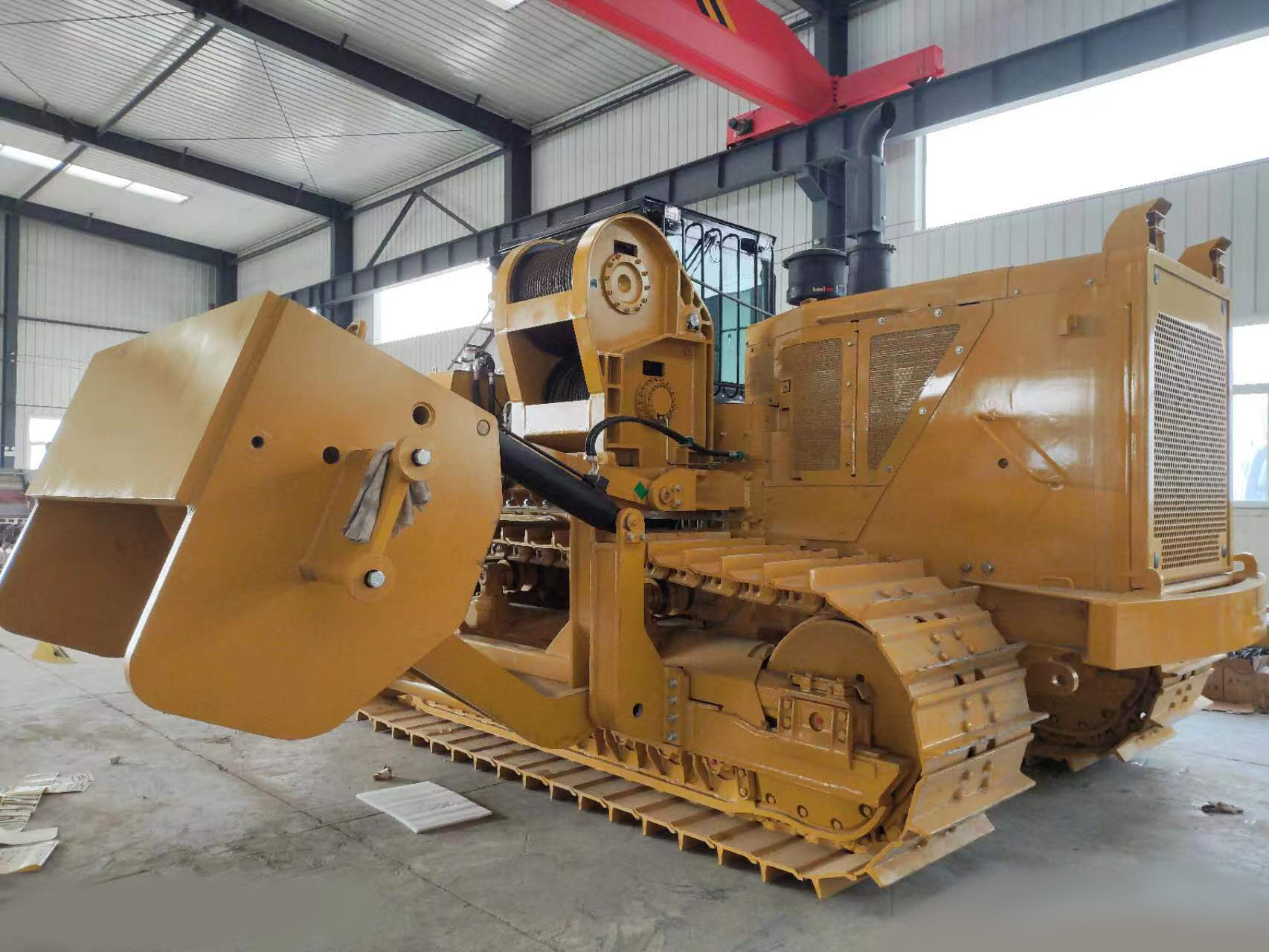

Product Photos

Wincoo Engineering Co., Ltd (WINCOO) is engaged in bringing the most suitable solutions/equipments for client, fabricators, EPC/C companies on pipe fabrication, tank construction, pipeline construction,industrial production lines, clean energy project and other industrial field.

Our Services & Strength
We have ability of providing workable solutions to support clients to be awarded with shorter project execution time, fewer man-hour cost and higher efficiency construction/fabrication method and better quality during phase of project bidding.

Based client’s facility/site space availability, we are able to study/design and present matched configurations on project schedule, quality, cost and productivity to guarantee production pace is accordance with project requirement.

To support project execution, we are always ready to work as fireman to give prompt supply on project materials from different consumables, tools, equipments/machines to special merchandise. With flexibility, we are also glad to perform as procurement agent in China to seek required supply resources.
